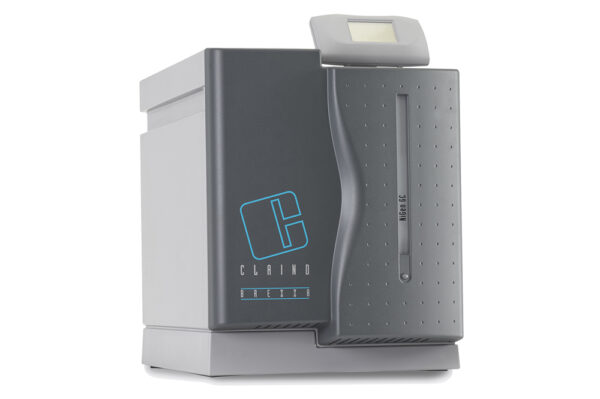

  • Claind NiGenGC Factsheet

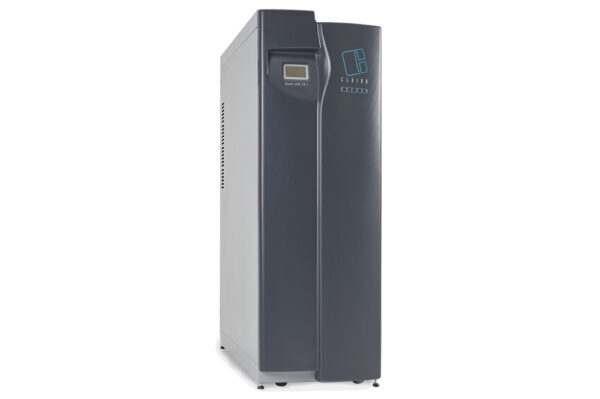

  • Claind NiGen HF Factsheet


  • High purity nitrogen guaranteed by the PSA technology CLAIND “Fast Purity” patent that allows the delivery of high purity nitrogen in a very short time
  • UHP PSA technology available in a standard version and the HC version which ensures 100% removal of hydrocarbons (HCT< 0,1 ppm for applications with high-sensivity detectors)
  • Parallel connection up to 4 stacked generators with tower configuration
  • Modular configuration
  • Facility to serve up to 12 FIDs/NPDs with makeup gas or up to 7 ECDs oppure 5 S/S
  • Facility for integration with a Brezza series dedicated air compressor (AirComp)
  • CPU with Touch Screen Display connectable with CAN-BUS to the generators (up to 32 units), allows the monitoring of operational status and menus with report alarms and functioning parameters

Available Models

Technical Specifications

Flow rate500 Nml/min ± 10% a 2000 m asl
TechnologyPSA CLAIND
Output pressure0 – 6 bar/0 – 87 psi ± 3%
Purity> 99,9995 %
Moisture< -50 °C dew-point ATP ± 2°C ATP
Air input characteristicsParticulate ≤ 0,01 mm Oil vapors ≤ 0,01 mg/m3 Moisture ≤ 3° C dew point ATP min pressure: 8 bar Air flow rate: 6 Nl/min
Electrical supply x nigen gc115/230 Vac ±10% 60-50 Hz 50 w
Electrical supply x nigen gc hc115 Vac ±10% 60 Hz 200 W 230 Vac ±10% 50 Hz 200 W
Index of protectionIP20
Noise< 50 dBA for the 98% of operation time < 60 dBA for 2 sec. each cycle
Operating temperature5°C – 40°C/40°F – 100°F
Environmental humiditymax 90% without condensation
Max altitude2000 m asl
DimensionsHeight: 40 cm + 7 cm/15.8” + 2.8” Width: 38 cm/14.9” Depth: 53 cm/20.8”
WeightGC version: 28 kg/62 lbs GC HC version: 32 kg/70.5 lbs
Pneumatic connectionsCompressed air inlet: G 1/8” female Nitrogen outlet: G 1/8” female

Key Features

  • High purity nitrogen guaranteed by the PSA technology
  • CLAIND “Fast Purity” patent that allows the delivery of high purity nitrogen in a very short time
  • UHP PSA technology available in a standard version and the HC version which ensures 100% removal of hydrocarbons (HCT< 0,1 ppm for applications with high-sensivity detectors)
  • Parallel connection up to 4 stacked generators with tower configuration
  • Modular configuration
  • Facility to serve up to 12 FIDs/NPDs with makeup gas or up to 7 ECDs oppure 5 S/S
  • Facility for integration with a Brezza series dedicated air compressor (AirComp)
  • CPU with Touch Screen Display connectable with CAN-BUS to the generators (up to 32 units), allows the monitoring of operational status and menus with report alarms and functioning parameters

Technical Specifications

Flow rate500 Nml/min ± 10% a 2000 m asl
TechnologyPSA CLAIND
Output pressure0 – 6 bar/0 – 87 psi ± 3%
Purity> 99,9995 %
Moisture< -50 °C dew-point ATP ± 2°C ATP
Air input characteristicsParticulate ≤ 0,01 mm Oil vapors ≤ 0,01 mg/m3 Moisture ≤ 3° C dew point ATP min pressure: 8 bar Air flow rate: 6 Nl/min
Electrical supply x nigen gc115/230 Vac ±10% 60-50 Hz 50 w
Electrical supply x nigen gc hc115 Vac ±10% 60 Hz 200 W 230 Vac ±10% 50 Hz 200 W
Index of protectionIP20
Noise< 50 dBA for the 98% of operation time < 60 dBA for 2 sec. each cycle
Operating temperature5°C – 40°C/40°F – 100°F
Environmental humiditymax 90% without condensation
Max altitude2000 m asl
DimensionsHeight: 40 cm + 7 cm/15.8” + 2.8” Width: 38 cm/14.9” Depth: 53 cm/20.8”
WeightGC version: 28 kg/62 lbs GC HC version: 32 kg/70.5 lbs
Pneumatic connectionsCompressed air inlet: G 1/8” female Nitrogen outlet: G 1/8” female

Key Features

  • High purity nitrogen guaranteed by the PSA technology
  • CLAIND “Fast Purity” patent that allows the delivery of high purity nitrogen in a very short time
  • UHP PSA technology available in a standard version and the HC version which ensures 100% removal of hydrocarbons (HCT< 0,1 ppm for applications with high-sensivity detectors)
  • Parallel connection up to 4 stacked generators with tower configuration
  • Modular configuration
  • Facility to serve up to 12 FIDs/NPDs with makeup gas or up to 7 ECDs oppure 5 S/S
  • Facility for integration with a Brezza series dedicated air compressor (AirComp)
  • CPU with Touch Screen Display connectable with CAN-BUS to the generators (up to 32 units), allows the monitoring of operational status and menus with report alarms and functioning parameters

Technical Specifications

Flow rate6 Nml/min ± 10% a 2000 m asl
Technologies employPSA CLAIND
Output pressure0 – 7 bar/0 – 100 psi ± 3%
Purity> 99,9995 %
Oil free compressorIncluded
Electrical supply115 Vac ±10% 60 Hz 200 W 230 Vac ±10% 50 Hz 200 W
Index of protectionIP20
Noise< 50 dBA during the stand by of the compressor
Operating temperature5°C fino 35°C (41°F fino 95°F)
Environmental humiditymax 90% without condensation
DimensionsHeight: 132 cm/52” Width: 44 cm/17.3” Depth: 110 cm/43.3”
Weight220 kg/489 lbs
Pneumatic connectionsCompressed air inlet: G 1/4” female Nitrogen outlet: G 1/4” female

Key Features

  • PSA molecular sieve technology dedicated to offer UHP Nitrogen for GC and ICP
  • CLAIND “Fast Purity“ patent that allows the delivery of high-purity nitrogen within 30 minutes
  • Built-in compressor  oil free including 2 x 50 l. tanks for Compressed Air and Nitrogen
  • Highly reliable Air compressor with maintenance required only after 14,000 hours of work
  • 2 gas outlets : available: UHP Nitrogen and Oil Free Air
  • CPU with Touch Screen Display  allows the monitoring of operational status and menus with report alarms and functioning parameters.
  • Equipped with full turn wheels for easy moving

Key Industries

  • Aerospace
  • Agriculture
  • Automotive
  • Biopharmaceutical and Biotechnology
  • Chemical
  • Construction
  • Cosmetics & Personal Care
  • Defense
  • Die & Mould
  • Education & Academics
  • Electronics
  • Energy
  • Environmental
  • Food & Beverage
  • Luxury
  • Machinery & Manufacturing
  • Medical
  • Mining & Minerals
  • Oil & Gas
  • Optical
  • Paper & Wood
  • Pharmaceutical
  • Polymers, Plastics and Rubbers
  • Powders & Pigments / Coating
  • Railway
  • Semiconductor, Solar & Electronics
  • Service
  • Shipbuilding
  • Textile
  • Wholesale & Retail

Brand

Claind

Established in 1979, Claind produces hydrogen, nitrogen and zero air generators. Its headquarters is in Lenno, on the shores of Lake Como, where all product development, production and administration activities are carried out. The customers who Claind targets can be broken down into three main categories: analysis laboratories, food and beverage companies and laser cutting companies.

Over the years Claind’s staff has received and paid back the confidence of more than 3,000 customers with over 20,000 installations worldwide.

The principle that guides every business decision is the desire to achieve customer satisfaction, in this way strengthening a relationship based on trust that goes far beyond mere contacts for technical and commercial aspects.
