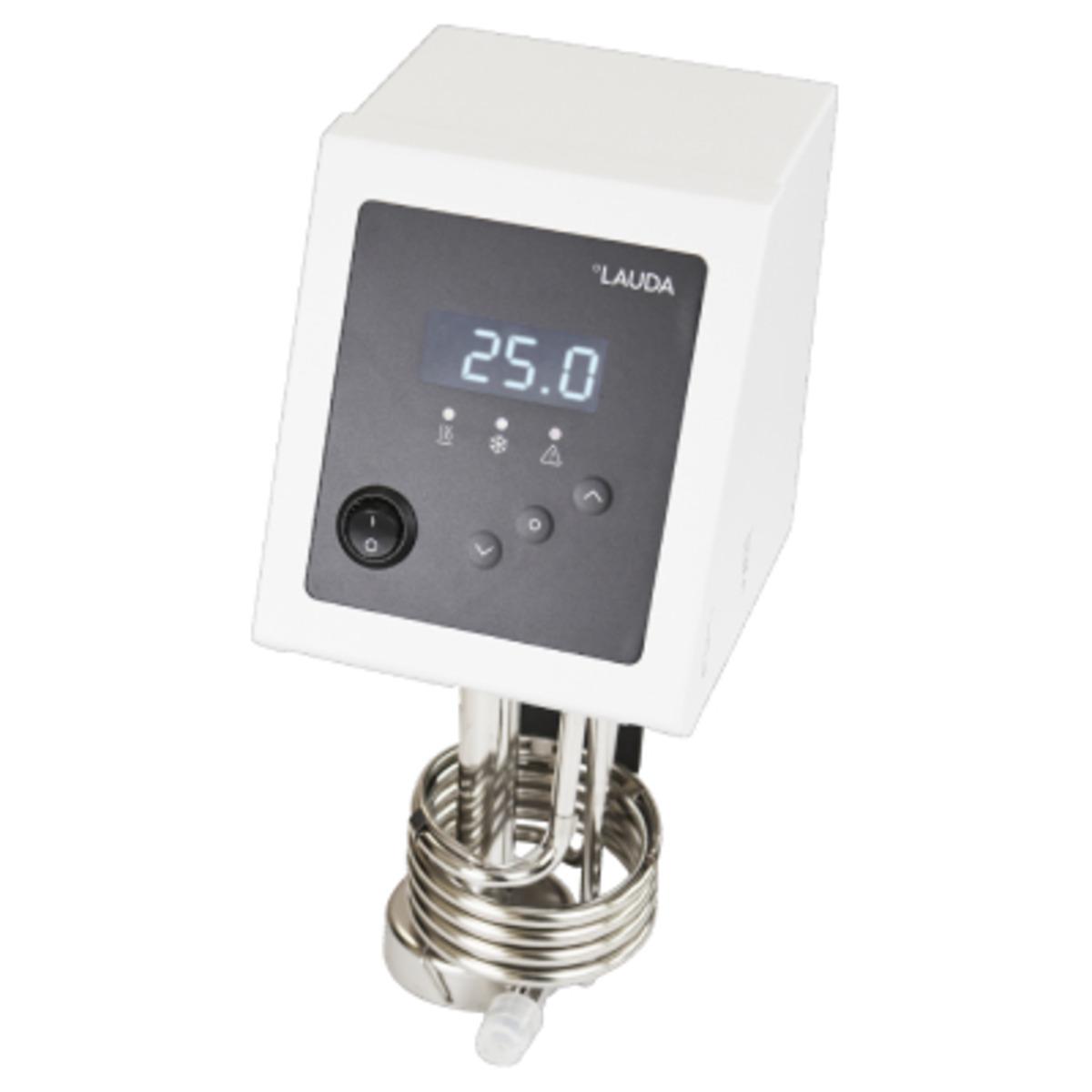

Cost-Effective Immersion Thermostat for Laboratory

The range of LAUDA Alpha Immersion Thermostats is the cost-effective choice in the area of high-quality LAUDA thermostats. This well-priced equipment range is made possible by minimizing any uneccessary features, with the focus on reliability thermostating performance and user-friendliness in laboratory thermostating.

LAUDA Alpha Immersion thermostats are suitable with non-flammable liquids (water, water/glycol) and for both internal and external thermstating tasks. A 1-point calibration of the thermostats can be carried out by the user. LAUDA Alpha Immersion Thermostats deliver excellent and reliable thermostating performance at room temperature, as well as heating applications up to an elevated temperature of 100°C.

Reliable Technology, Modern Design, Favorable Price

LAUDA Alpha Immersion Thermostats can be used for any bath with a wall thickness of up to 30 mm by means of the screw clamo included in the scope of delivery. Using the additional pump circulation set and a cooling coil, the immersion thermostat can be expanded to form a full-fledged thermostating system.

Technical Specifications

Working temperature range25…100°C
Temperature stability0.05 ±K
Heater Power1.5 kW
Pump pressure max.0.2 bar
Pump flow max.*15 L/min

Key Features

  • Easy and intuitive menu navigation and legible display values
  • Low level protection with acoustic and visual alarm to shut off heater and pump when heat transfer liquid is too low
  • Timer function to automatically shut down after preset time
  • Automatic compressor control supplies strong cooling output only when needed improves cost efficiency and equipment life
  • Fitted with screw clamp to allow easy change to different bath vessels with wall thickness of up to 30 mm
  • Variable flow rates via inserts and fittings adapt rate of circulation to the size of the bath
