Lauda – ECO Heating Thermostats with Transparent Bath

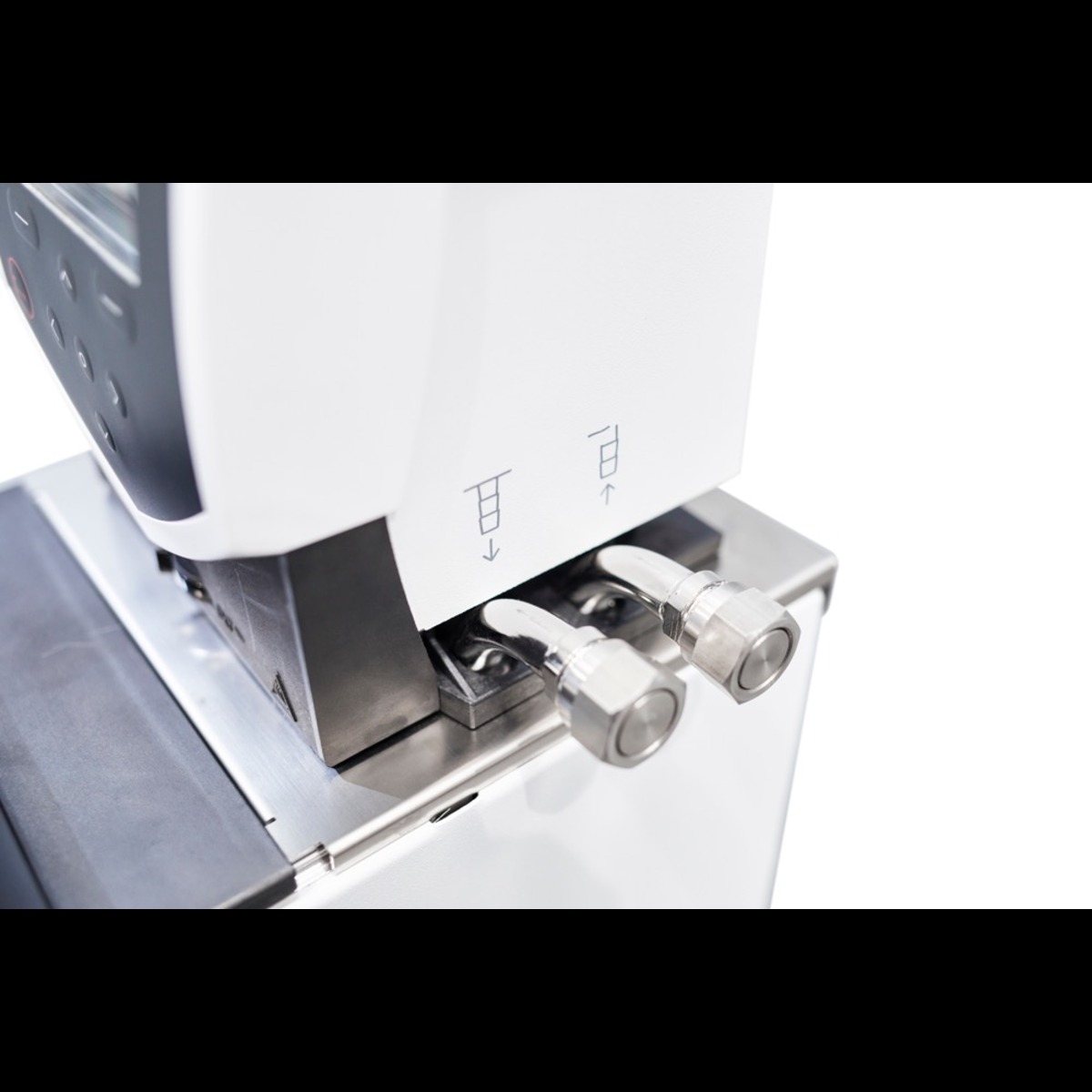

LAUDA ECO stands out due to its range of functionality and ease of use. A menu navigation in plain text allows easy operation of the devices. Both control heads are equipped with a mini-USB interface as standard. Further interfaces are available as modules. Another innovation is the practical allocation of a flow-rate switch at the front on the control head. This means that individual adjustment of the flow between internal and external circulation is possible even during operation.
LAUDA ECO Heating Thermostats with transparent plastic baths provide the necessary visibility in all cases where test samples need to be observed during thermostating. The thermostats with baths made from polycarbonate can be used in the temperature range of up to 100°C. They have a filling volume of 5 up to 20 liters.
LAUDA ECO Heating Thermostats – Control Head Silver
The control head Silver with 2.0 kW heater power (230 V) are now perfectly suited for thermostatting tasks up to 200°C. They are fitted with a monochrome LCD display.
LAUDA ECO Heating Thermostats – Control Head Gold
LAUDA ECO control head Gold with heating power of 2.6 kW (230 V) have a working temperature of up to 200°C. They are provided with a larger colored TFT display. Temperature profiles can be displayed graphically. A comprehensive programer with five programs and 150 temperature-time segments is a further distinctive feature compared to Silver.
Technical Specifications
Working temperature range
20…200°C
Temperature stability
0.01 ±K
Heater Power (Silver)
2.0 kW
Heater Power (Gold)
2.6 kW
Pump pressure max.
0.55 bar
Pump flow max.
22 L/min
Bath depth
160 mm

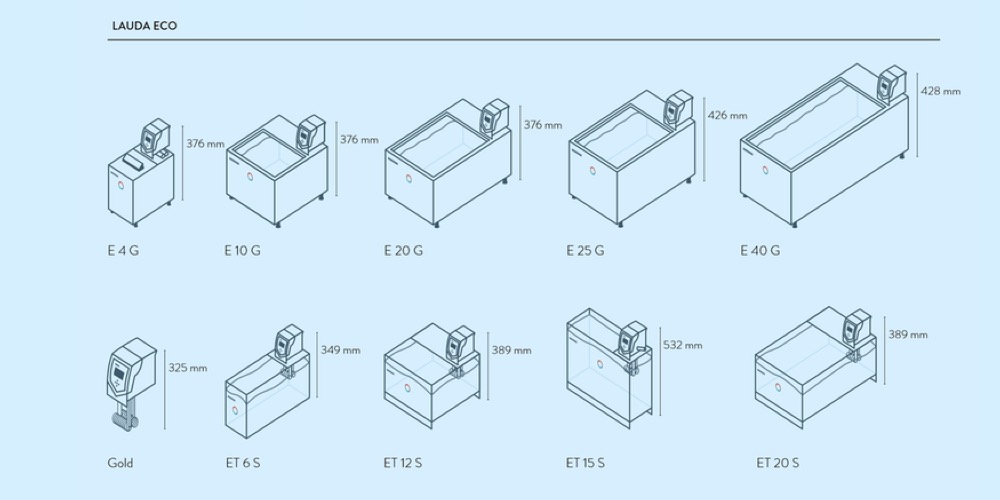

Available Models
Technical Specifications
Working temperature range
20…200°C
Temperature stability
0.01 ±K
Heater Power
2.0 kW
Pump pressure max.
0.55 bar
Pump flow max.
22 L/min
Bath volume
5…6 L
Bath Opening /Depth
130 × 285 / 160 mm
Technical Specifications
Working temperature range
20…200°C
Temperature stability
0.01 ±K
Heater Power
2.0 kW
Pump pressure max.
0.55 bar
Pump flow max.
22 L/min
Bath volume
9.5…12 L
Bath Opening /Depth
300 × 175 / 160 mm
Technical Specifications
Working temperature range
20…200°C
Temperature stability
0.01 ±K
Heater Power
2.0 kW
Pump pressure max.
0.55 bar
Pump flow max.
22 L/min
Bath volume
15…20 L
Bath Opening /Depth
300 × 350 / 160 mm
Technical Specifications
Working temperature range
20…200°C
Temperature stability
0.01 ±K
Heater Power
2.6 kW
Pump pressure max.
0.55 bar
Pump flow max.
22 L/min
Bath volume
5…6 L
Bath Opening /Depth
130 × 285 / 160 mm
Technical Specifications
Working temperature range
20…200°C
Temperature stability
0.01 ±K
Heater Power
2.6 kW
Pump pressure max.
0.55 bar
Pump flow max.
22 L/min
Bath volume
9.5…12 L
Bath Opening /Depth
300 × 175 / 160 mm
Technical Specifications
Working temperature range
20…200°C
Temperature stability
0.01 ±K
Heater Power
2.6 kW
Pump pressure max.
0.55 bar
Pump flow max.
22 L/min
Bath volume
15…20 L
Bath Opening /Depth
300 × 350 / 160 mm
Key Features
ECO Heating Thermostats with Transparent Bath
Easy and intuitive operation with clearly readable parameters on LCD / TFT display
Programer allows automation of temperature variations and test series
Strong circulation pump with six levels allow adaptation of pump power to applications and different bath sizes
Provides user with flexible control options with a range of different module options (ANalog, RS232/485, contact, Profibus, Ethernet, EtherCAT, Pt100/LiBus)
Command remote control is possible via LiBus module.
Possible computer connection via mini-USB enables easy software updates
Drain valves as standard for easy and safe changing of heat transfer liquids
