Lauda – Cooling and Heating Bath Thermostats – PRO

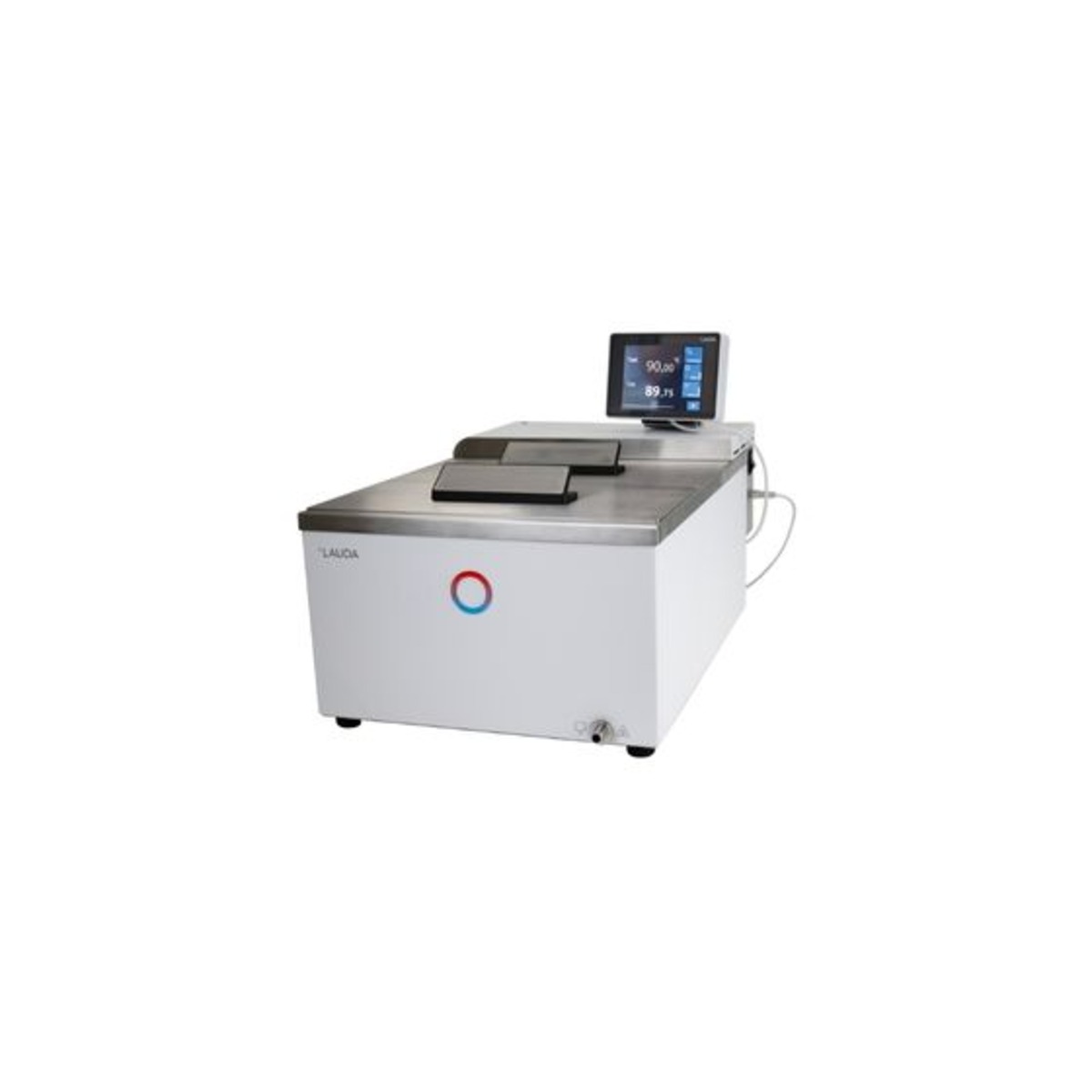

The New LAUDA PRO: Compact, Efficient, Powerful.
Real professionals do not make compromises – least of all with temperature control. We developed the new LAUDA PRO thermostats for you. Powerful bath thermostats for precise internal temperature control from -100 up to 200 °C.
There are two operating units available: Base or Command Touch. These can be removed from the thermostat for very high levels of flexibility. This not only permits remote control of the devices but also reduces the height of the devices. In addition, they are also equipped with a hybrid cooling system as standard. This also enables additional cooling of the refrigerating machine with water. Heating bath thermostats come equipped with a cooling coil as standard.
Available Models
Technical Specifications
| Working temperature min. | -100°C |
| Working temperature max. | 200°C |
|---|---|
| Interface | Ethernet, USB (Type B) |
| Temperature stability | 0.01 ±K |
| Bath volume max. | 10.5 L |
| Heater power | 3.6 kW |
Technical Specifications
| Working temperature min. | -90°C |
| Working temperature max. | 200°C |
| Interface | Ethernet, USB (Type B) |
| Temperature stability | 0.01 ±K |
| Bath volume max. | 10.5 L |
| Heater power | 3.6 kW |
Technical Specifications
| Working temperature min. | -40°C |
| Working temperature max. | 200°C |
| Interface | Ethernet, USB (Type B) |
| Temperature stability | 0.01 ±K |
| Bath volume max. | 21 L |
| Heater power | 3.6 kW |
Technical Specifications
| Working temperature min. | -45°C |
| Working temperature max. | 200°C |
| Interface | Ethernet, USB (Type B) |
| Temperature stability | 0.01 ±K |
| Bath volume max. | 21 L |
| Heater power | 3.6 kW |
Technical Specifications
| Working temperature min. | -90°C |
| Working temperature max. | 200°C |
|---|---|
| Interface | Ethernet, USB (Type B) |
| Temperature stability | 0.01 ±K |
| Bath volume max. | 21 L |
| Heater power | 3.6 kW |
Technical Specifications
| Working temperature min. | -35°C |
| Working temperature max. | 200°C |
|---|---|
| Interface | Ethernet, USB (Type B) |
| Temperature stability | 0.01 ±K |
| Bath volume max. | 29.5 L |
| Heater power | 3.6 kW |
Technical Specifications
| Working temperature min. | 40°C |
| Working temperature max. | 250°C |
|---|---|
| Interface | Ethernet, USB (Type B) |
| Temperature stability | 0.01 ±K |
| Bath volume max. | 10 L |
| Heater power | 3.6 kW |
Technical Specifications
| Working temperature min. | 35°C |
| Working temperature max. | 250°C |
| Interface | Ethernet, USB (Type B) |
| Temperature stability | 0.01 ±K |
| Bath volume max. | 20 L |
| Heater power | 3.6 kW |
Technical Specifications
| Working temperature min. | 30°C |
| Working temperature max. | 250°C |
|---|---|
| Interface | Ethernet, USB (Type B) |
| Temperature stability | 0.01 ±K |
| Bath volume max. | 28.5 L |
| Heater power | 3.6 kW |
Key Features
100% Flexibility for Internal Temperature Control:
- Functional check of electronic components
- Material testing of metal and plastic samples
- Sensor calibration
- Temperature control of measuring cells
100% Efficiency for External Applications:
- Thermal control of chemical and biological reactions
- Precise temperature control for crystallization processes
- Temperature control of measuring and testing rigs, heat exchangers and distillation plant
Key Industries
- Aerospace
- Agriculture
- Automotive
- Biopharmaceutical and Biotechnology
- Chemical
- Construction
- Cosmetics & Personal Care
- Defense
- Die & Mould
- Education & Academics
- Electronics
- Energy
- Environmental
- Food & Beverage
- Luxury
- Machinery & Manufacturing
- Medical
- Mining & Minerals
- Oil & Gas
- Optical
- Paper & Wood
- Pharmaceutical
- Polymers, Plastics and Rubbers
- Powders & Pigments / Coating
- Railway
- Semiconductor, Solar & Electronics
- Service
- Textile
- Wholesale & Retail
Brand
We are LAUDA – The world leader in precise temperature control. Our Constant temperature equipment and Heating and cooling systems are at the heart of many applications. As a full-service provider we guarantee the optimum temperature in research, production and quality control. We are the trusted partner, particularly in the fields of automotive, chemical/ pharmaceutical, semiconductor and laboratory/ medical industries. For over 60 years we have been inspiring our customers with our competent consulting and innovative, environmentally-friendly concepts, anew every day – globally.
