LAUDA Scientific – Tensiometer – TD4

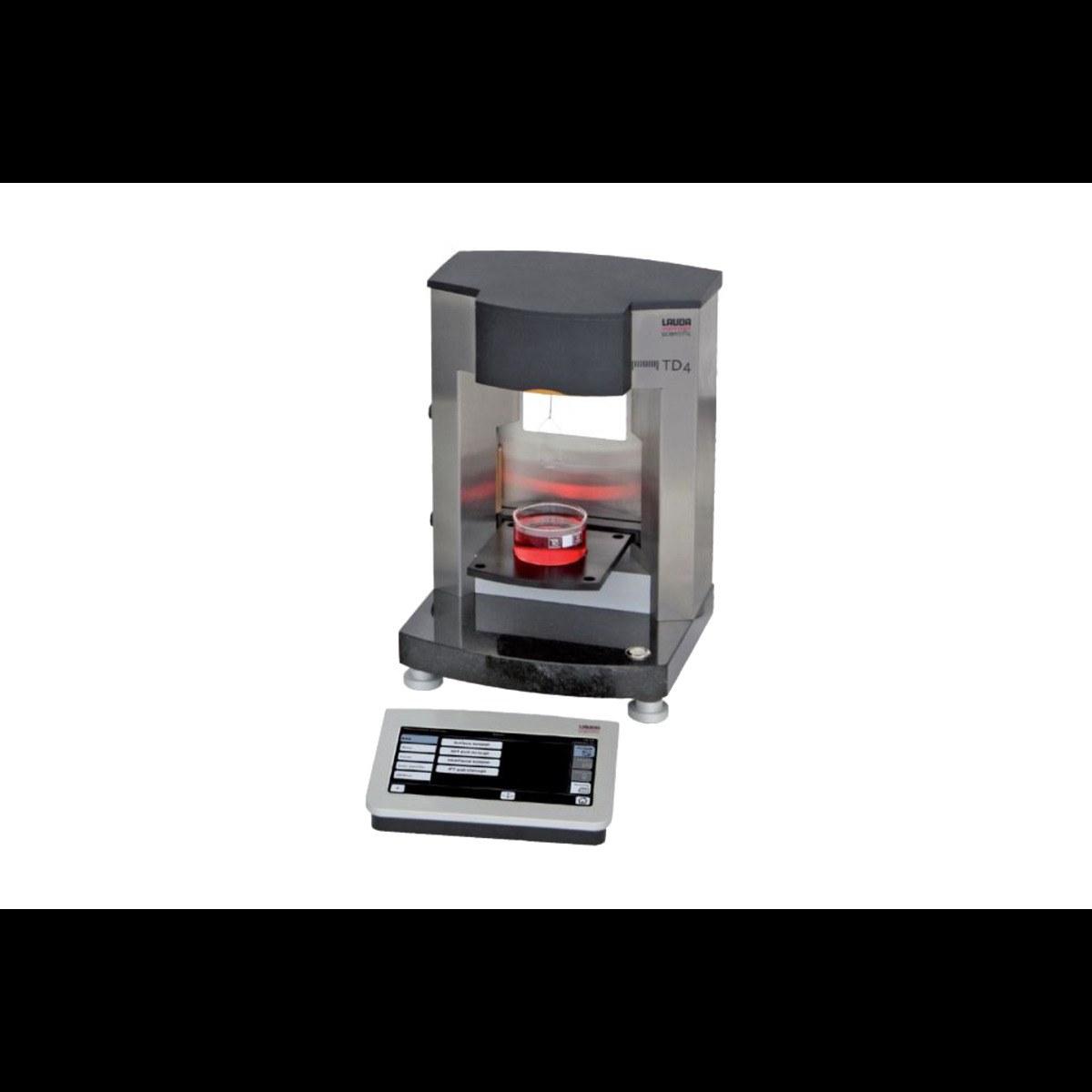

The TD4 is a compact ring/plate tensiometer, which, as a standalone device, offers maximum ease of use in research and development, as well as for quality control.
The graphic operating unit with touch-screen enables accurate tracking of measurements (even time-dependent measurements).
The pre-programmed standard methods, the GLP-compliant user management system, the optional equipment with a small Peltier-based thermostat (PTT+) and the intuitive user guiding make the TD4 a compact and precise measuring instrument.
Technical Specifications
| Surface tension resolution | 0.01 mN/m |
| Weighing system resolution | 0.1 mg |
|---|---|
| Measuring range | 0.75 mN/m to 300 mN/m (999 mN/m with plate) |
| Dimensions (WxDxH) | 245x205x335 mm. |
Key Features
- Flexible for research and quality control.
- User-friendly with predefined standard methods.
- Precise, high-resolution distance measurement.
- Optional temperature control, no additional space required.
Brand
LAUDA Scientific is your partner for Measuring instruments for determining the viscosity of polymer solutions, optical contact angle measuring instruments for measuring the free surface energy and the wetting behavior, and classical tensiometers for determining the surface and interfacial tension of oils and surfactants.
