Mareno – Modular Cooking – Star 70 Bratt Pans
Tilting bratt pans are the most practical and advanced solution for preparing all sorts of dishes.
Technical Details
- Cooking tank in Aisi 304 stainless steel, thick bottom made of mild steel, Duplex and cast iron.
- Manual lifting of tank.
- Optional automatic tank filling.
- Double-skinned lid with drip section at rear. Sturdy Aisi 304 stainless steel hinges and spring balancing to guarantee maximum safety.
- Thermostatic temperature control from 90 to 280 °C for gas models, and from 100 to 285 °C for electric models.
- A microswitch cuts off the power supply when the tank is lifted.
- Gas bratt pans: Chrome steel burner and gas valve with thermocouple.
- Electric bratt pans: Armoured heating elements in Incoloy outside the tank.
Techinical Specifications
| NBR78GF | NBR78GI | NBR78EF | NBR78EF2 | NBR78EI | NBR78EI2 | |
|---|---|---|---|---|---|---|
| W x D x H (mm) | 800 x 730 x870 | 800 x 730 x870 | 800 x 730 x870 | 800 x 730 x870 | 800 x 730 x870 | 800 x 730 x870 |
| Weight (kg) | 124 | 135 | 120 | 120 | 137 | 137 |
| Volume (m³) | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
| Gas power (kW) | 14 | 14 | 10 | 10 | 10 | 10 |
| Qty heating zones | 1 x 14 kW | 1 x 14 kW | 1 x 10 kW | 1 x 10 kW | 1 x 10 kW | 1 x 10 kW |
Available Models

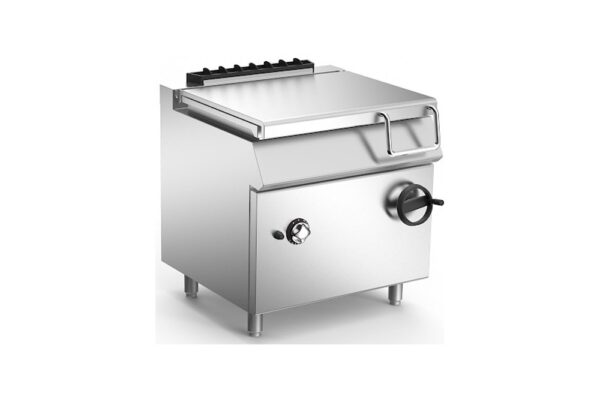

Gas tilting bratt pan constructed in AISI 304 stainless steel. Cooking tank with manual tilt mechanism, constructed in stainless steel, 60-litre capacity, rectangular in shape with radiused corners for ease of cleaning, bottom in 12mm thick FE3600 iron. Designed for insertion of water filling kit operated by manual control with fixed water tap located on top. Double skinned lid with drip zone at rear for conveying condensate liquid into the pan, fitted with sturdy AISI 304 stainless steel hinges with spring balancing. Satin-finish AISI 304 tubular steel handle with front grip, joined to lid. Heating by means of steel burner with stabilized flame underneath the tank, gas safety valve with thermocouple. Automatic ignition by means of piezoelectric device with waterproof cap. Thermostatic temperature control from 100° to 280°C. Safety thermostat. Heating automatically turned off when pan is tilted. Height adjustable feet in stainless steel.

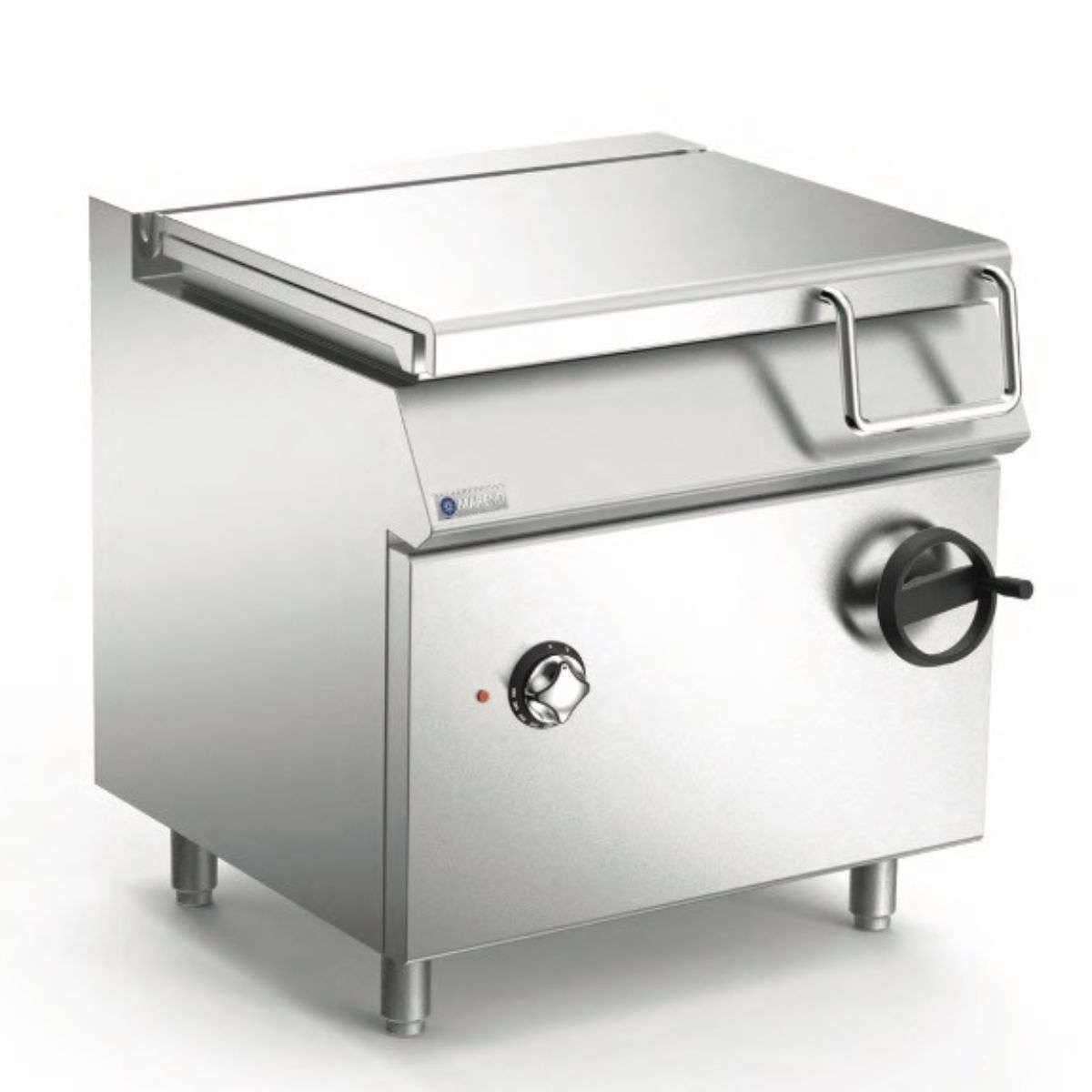

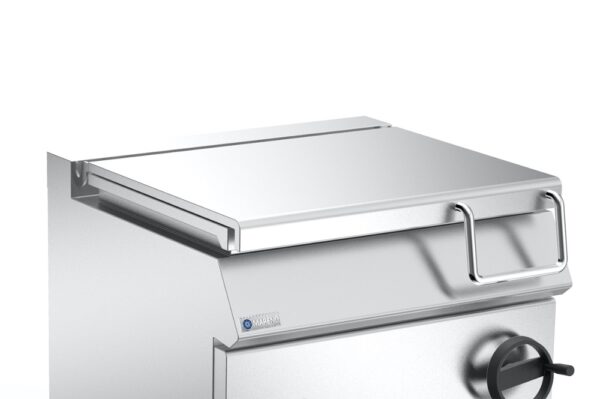

Electric tilting bratt pan constructed in AISI 304 stainless steel. Cooking tank with manual tilt mechanism, constructed in stainless steel, 60-litre capacity, rectangular in shape with radiused corners for ease of cleaning, bottom in 12mm thick FE3600 iron. Designed for insertion of water filling kit operated by manual control with fixed water tap located on top. Double skinned lid with drip zone at rear for conveying condensate liquid into the pan, fitted with sturdy AISI 304 stainless steel hinges with spring balancing. Satin-finish AISI 304 tubular steel handle with front grip, joined to lid. Armored heating elements in Incoloy underneath the tank. Thermostatic temperature control from 100° to 280° C. Safety thermostat. Orange indicator light on control panel indicates appliance operation. Heating automatically turned off when pan is tilted. Height adjustable feet in stainless steel.
Electric tilting bratt pan constructed in AISI 304 stainless steel. Cooking tank with manual tilt mechanism, constructed in stainless steel, 60-litre capacity, rectangular in shape with radiused corners for ease of cleaning, bottom in 12mm thick FE3600 iron. Designed for insertion of water filling kit operated by manual control with fixed water tap located on top. Double skinned lid with drip zone at rear for conveying condensate liquid into the pan, fitted with sturdy AISI 304 stainless steel hinges with spring balancing. Satin-finish AISI 304 tubular steel handle with front grip, joined to lid. Armored heating elements in Incoloy underneath the tank. Thermostatic temperature control from 100° to 280° C. Safety thermostat. Orange indicator light on control panel indicates appliance operation. Heating automatically turned off when pan is tilted. Height adjustable feet in stainless steel.
Electric tilting bratt pan constructed in AISI 304 stainless steel. Cooking tank with manual tilt mechanism, constructed in stainless steel, 60-litre capacity, rectangular in shape with radiused corners for ease of cleaning, bottom in 12mm thick FE3600 iron. Designed for insertion of water filling kit operated by manual control with fixed water tap located on top. Double skinned lid with drip zone at rear for conveying condensate liquid into the pan, fitted with sturdy AISI 304 stainless steel hinges with spring balancing. Satin-finish AISI 304 tubular steel handle with front grip, joined to lid. Armored heating elements in Incoloy underneath the tank. Thermostatic temperature control from 100° to 280° C. Safety thermostat. Orange indicator light on control panel indicates appliance operation. Heating automatically turned off when pan is tilted. Height adjustable feet in stainless steel.
Electric tilting bratt pan constructed in AISI 304 stainless steel. Cooking tank with manual tilt mechanism, constructed in stainless steel, 600-litre capacity, rectangular in shape with radiused corners for ease of cleaning, bottom in 10mm thick Duplex. Designed for insertion of water filling kit operated by manual control with fixed water tap located on top. Double skinned lid with drip zone at rear for conveying condensate liquid into the pan, fitted with sturdy AISI 304 stainless steel hinges with spring balancing. Satin-finish AISI 304 tubular steel handle with front grip, joined to lid. Armored heating elements in Incoloy underneath the tank. Thermostatic temperature control from 100° to 280°C. Safety thermostat. Orange indicator light on control panel indicates appliance operation. Heating automatically turned off when pan is tilted. Height adjustable feet in stainless steel.
Electric tilting bratt pan constructed in AISI 304 stainless steel. Cooking tank with manual tilt mechanism, constructed in stainless steel, 60-litre capacity, rectangular in shape with radiused corners for ease of cleaning, bottom in 10mm thick Duplex. Designed for insertion of water filling kit operated by manual control with fixed water tap located on top. Double skinned lid with drip zone at rear for conveying condensate liquid into the pan, fitted with sturdy AISI 304 stainless steel hinges with spring balancing. Satin-finish AISI 304 tubular steel handle with front grip, joined to lid. Armored heating elements in Incoloy underneath the tank. Thermostatic temperature control from 100° to 280°C. Safety thermostat. Orange indicator light on control panel indicates appliance operation. Heating automatically turned off when pan is tilted. Height adjustable feet in stainless steel.
