Sopat – Probe – Macroscopic Probes
SOPAT Macroscopic probes are probes for particle size analysis in the range of 70 to 26,000 µm.
Available Models
Technical Specifications
| Measurement Range [μm] | 70 – 9,300 | |
|---|---|---|
| Field of View [mm] | 21 | |
| Tube Length [mm] | 320 -1,000 | |
| Tube Diameter [mm] | 20 | |
| Pressure Range [bar] | -0.1 to 40 | |
| Probe Temperature [°C] | -50 to 450 | |
| Periphery Temperature Range [°C] | -10 to 40 | |
| pH Level | 0 -14 | |
| Probe Window Material | Sapphire glass | |
| Probe Tube Material* | 1.4571 | |
| Probe Housing material | 1.4404 | |
| Weight (without cable) [kg] | 4 | |
| Focus | Automatic | |
| Picture Rate [Hz] | 20 | |
| Picture Resolution [MP] | 5 | |
| Power input [VA] | 140 | |
| Certifications | CE, IP65, CIP/SIP | |
| *Special production with the following materials is also available: 1.4401, 2.4602 (Hastelloy C22), Titanium | ||
Application examples for using the SOPAT Kr probe:
- Peels
- Granulates
- Fertilizer pellets
- Bubble columns
- Gravel
Technical Specifications
| Measurement Range [μm] | 260 – 26,000 |
| Field of View [mm] | 60 |
| Tube Length [mm] | – |
| Tube Diameter [mm] | 7 |
| Pressure Range [bar] | 0 – 50 |
| Probe Temperature [°C] | – |
| Periphery Temperature Range [°C] | -10 to 65 |
| pH Level | 0 -14 |
| Probe Window Material | Quartz glass |
| Probe Tube Material* | 1.4404 |
| Probe Housing material | 1.4404 |
| Weight (without cable) [kg] | 4 |
| Focus | Manual |
| Picture Rate [Hz] | 14 |
| Picture Resolution [MP] | 5 |
| Power input [VA] | 140 |
| Certifications | CE, IP65, CIP/SIP |
| *Special production with the following materials is also available: 1.4401, 2.4602 (Hastelloy C22), Titanium |

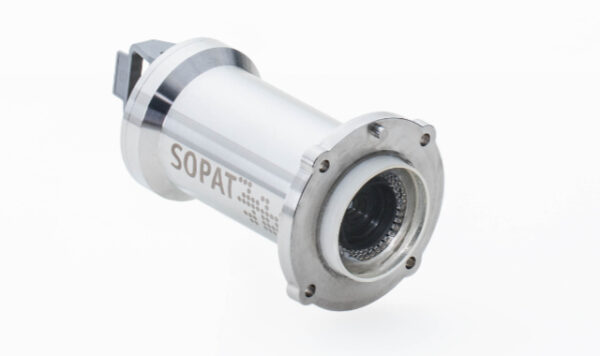

Application examples for using the SOPAT InView:
- Peels
- Granulates
- Fertilizer pellets
Key Industries
- Biopharmaceutical and Biotechnology
- Chemical
- Cosmetics & Personal Care
- Education & Academics
- Food & Beverage
- Pharmaceutical
