Studer – Conventional Cylindrical Grinding Machines – S20 & S30
STUDER conventional cylindrical grinding machines are designed for the grinding of workpieces in individual as well as small and large series production operations.
The S20 is designed for grinding medium-sized workpieces in individual and batch production. It is suitable for use in any industry where precise small components are manufactured. Operation is very simple and the machine can be reset very quickly.
The S30 is designed for grinding workpieces in individual and small batch production. It is suitable for use in any industry where precise medium-sized workpieces are manufactured. Operation is very simple and the machine can be reset very quickly.
Available Models
Technical Specifications
| Height of centres | 100 mm. |
| Workpiece length | 0-400/650 mm. |
|---|---|
| Workpiece diameter | 0-199 mm |
| Max. workpiece weight | 20 Kg. |
Technical Specifications
| Distance between centers | 650/1000 mm |
| Height of centres | 225 mm. |
|---|---|
| Workpiece length | 0-650/1000 mm. |
| Workpiece diameter | 0-449 mm |
| Max. workpiece weight | 150 Kg. |
Key Features
STUDER – Conventional Cylindrical Grinding Machine | S20
- Workhead with hydrodynamic bearing for grinding between fixed centres or with rotating spindle.
- Tailstock with adjustable centre pressure and fine adjustment for rapid and easy cylindricity correction.

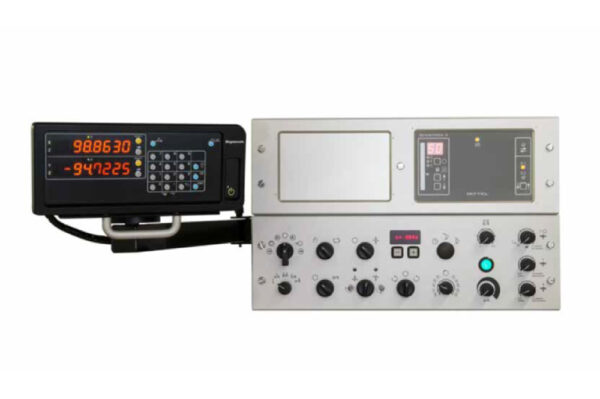

- Control cabinet connected to the machine. Can be expanded to include in-process gauging and Sensitron.
- Automatic grinding cycles for plunge and traverse grinding operations.
- Rapid retraction of feed handwheel to the preset grinding allowance.
- Plunge grinding and travel grinding with or without rapid infeed.
- Compact design.
- Varied range of accessories.
STUDER – Conventional Cylindrical Grinding Machine | S30
- Workhead fitted with hydrodynamic bearing as standard and a roller-bearing workhead (optional) make it possible to grind between fixed centres as well as with rotating centres.
- Tailstock with adjustable centre pressure and fine adjustment for quick and easy cylindricity correction.
- Control cabinet permanently attached to the machine. Can be expanded for in-process gauging and Sensitron.
- Granitan® S103 mineral-cast machine base.
- Rapid retraction of the feed handwheel to the preset grinding allowance.
- Plunge grinding and travel grinding with or without rapid infeed.
- External and internal grinding possible in one clamping.
- Extensive range of accessories.
Key Industries
- Aerospace
- Automotive
- Defense
- Die & Mould
- Education & Academics
- Electronics
- Machinery & Manufacturing
- Medical
- Mining & Minerals
- Oil & Gas
- Semiconductor, Solar & Electronics
- Shipbuilding
Brand
STUDER has been writing grinding history since 1912. STUDER has developed from a small enterprise into an internationally active company with around 800 staff. Fritz Studer AG owes its position in the market to the experience gained from building more than 24,000 systems. Its former pioneering spirit is also reflected in its present-day products, and is impressively demonstrated by the quality and quantity of its innovations.
