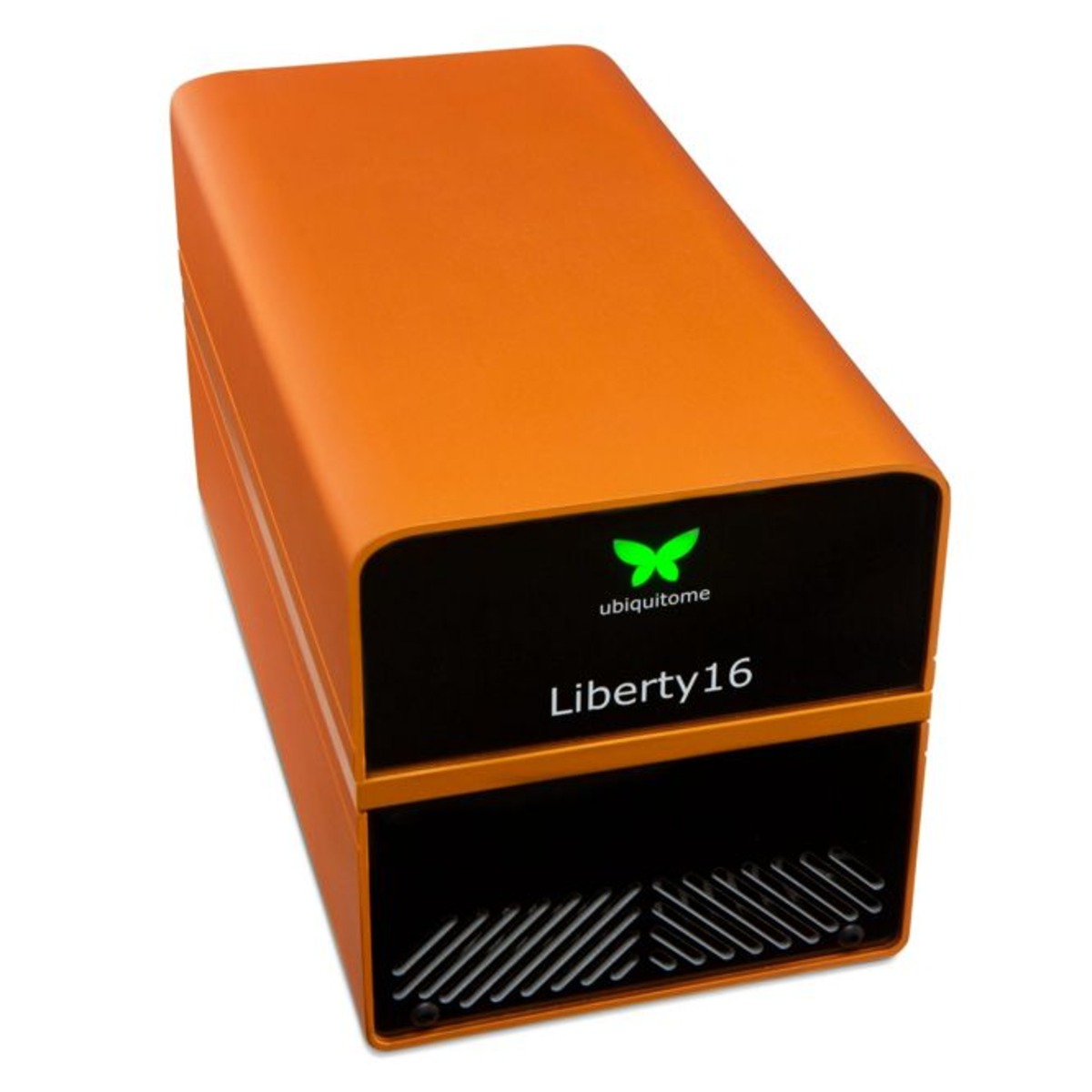

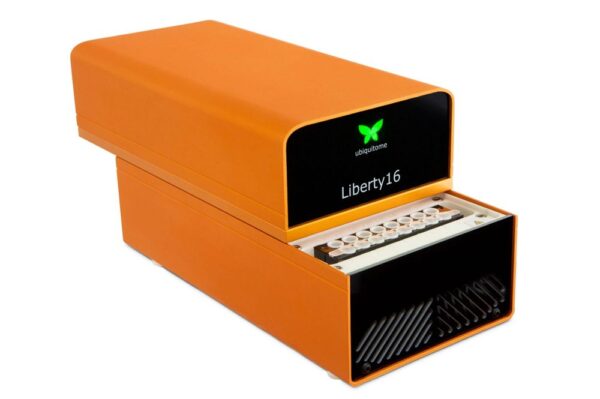

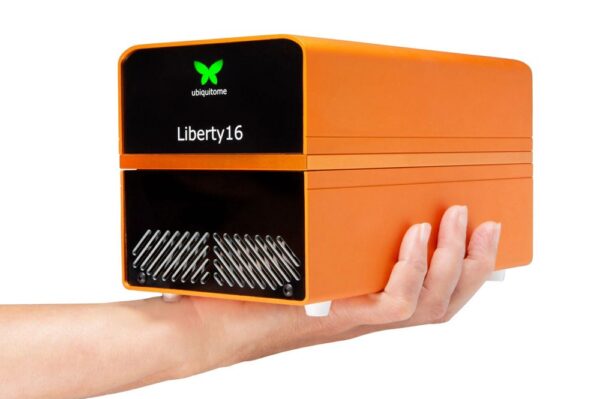

Ubiquitome – Liberty16 mobile real time PCR system
The Liberty16 is your personal qPCR machine. Run your samples without waiting, using a beautiful device that sits neatly on your bench.
It even has a robust, stylish aluminum casing which makes it standout wherever you are.
It doesn’t even need a laptop to run. Download the powerful Ubiquitome iPhone app from the App Store. It allows you to set up your run, view the run in progress, call Cq’s dynamically and even upload your data to share in the cloud.
Designed With You in Mind
Designed from the ground up to fit in with you, the Liberty16’s footprint will fit with whatever space you have to work with, wherever you are. Low profile by design, it’s easy to reach over to access other parts of your workspace or to be put away in a drawer to maximize your flexibility.
Away from a power outlet but still need to get work done? We have you covered with a state of the art internal rechargeable lithium ion battery offering 2-3 hours of cord free run time.
Technical Specifications
| Block format | 16 wells |
| Thermal system | Peltier-based system |
| Consumables | Industry standard 8 strip PCR tube and flat caps |
| Sample volume | 10μl to 40μl |
| Average ramp rate | 2.3°C/sec |
| Ambient operation | 10°C – 40°C |
| Calibrated dyes | SYBR Green, FAM |
| Data collection | Data collected for all wells |
| Battery | Internal – rechargeable lithium ion |
| Real-Time PCR run time | As little at 20mins |
| Outside dimensions | Length closed: 21.2 cm Width: 11 cm Height: 11.5 cm |
| Weight | 2.5 kg |
| Charger | Included (input AC:100-240V) |
Key Features
Easy. Fast. Open. Connected. Stay ahead of the curve with Liberty16 real time PCR in the palm of your hand.
- The mobile Liberty16 real time PCR device for answers in as little as 20 mins.
- Liberty16 connectivity provided via Bluetooth.
- Update results to the cloud in real time.
- Simple 30 second real time PCR protocol set-up and run.
- Automated Cq calling
- Dynamic graphing of annotated real time PCR amplification curves.
Out of the Box Performance With the Tools You Trust
Whether you love Taqman® (Figure 1) or SYBR® (Figure 2) as an open platform, the Liberty16 has you covered with gold standard performance whatever master mix you prefer.
Benchmarked to the best, you don’t sacrifice performance for convenience (Figure 3).
Liberty16 also uses the industry standard 8 strip PCR tube and flat cap format so you have one less variable to worry about in your qPCR experiments.
Real time PCR on your terms is here, without compromise.
Figure 3: IDT Primetime® FAM labelled-ZEN quenched primer probe designed to target Zika virus with Promega GoTaq® One Step Mastermix. Left panel ABI 7500. Right panel Liberty16.
Panel Liberty16
Easy Set-Up and Run
Key Industries
- Agriculture
- Biopharmaceutical and Biotechnology
- Chemical
- Cosmetics & Personal Care
- Environmental
- Food & Beverage
- Medical
- Pharmaceutical
Brand
Ubiquitome believes freedom to access genomic information will change how we view the world around us and the way we live our lives. Ubiquitome’s mission is to enable universal access to genomic information through ubiquitous, cloud-connected, genetic analysis devices.
