Welbilt – Ice Cube Machines – U (NEO) series
The Everywhere You Need Ice Machine

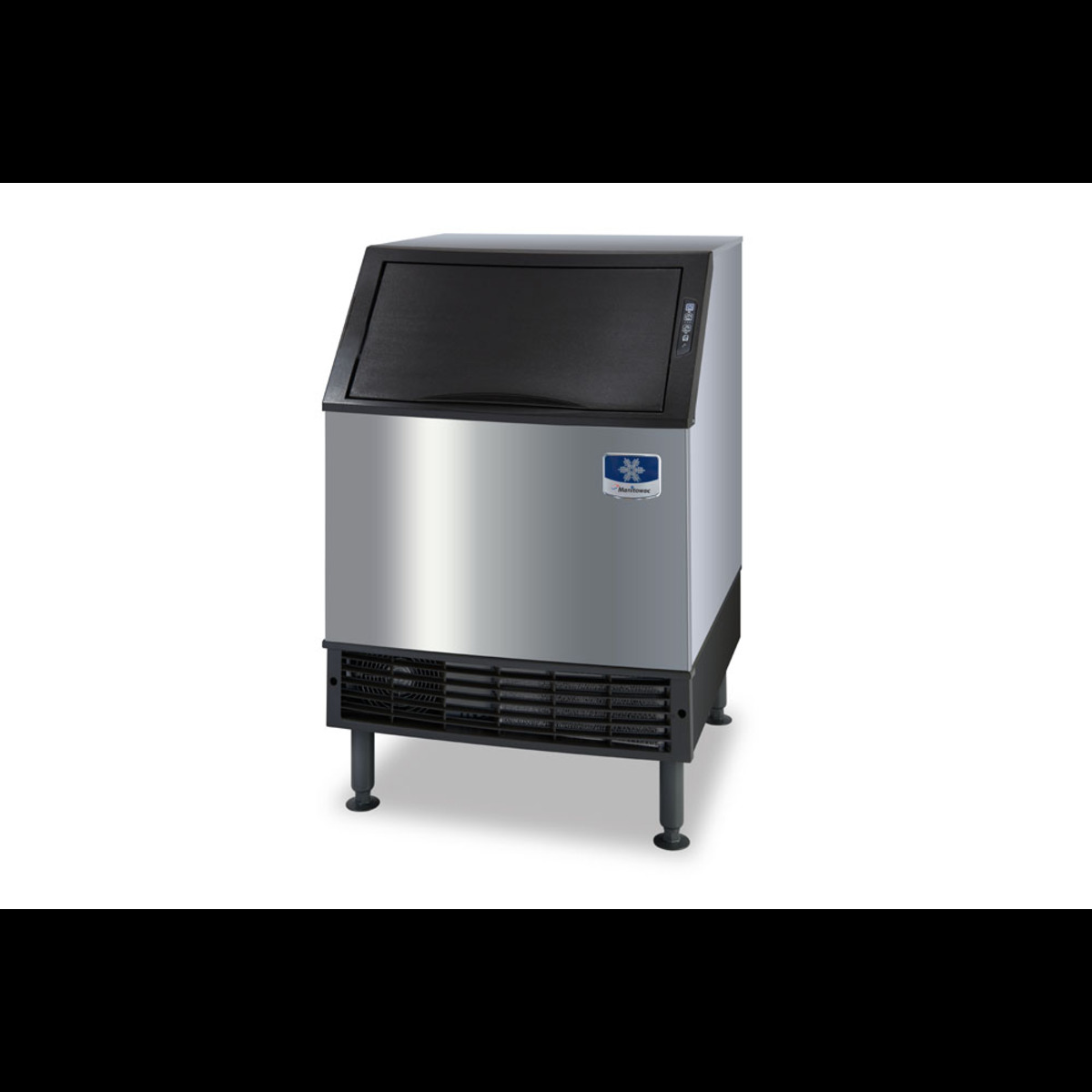

Welbilt Manitowoc U series cube ice machines with new levels in performance, intelligence and convenience offer an all-in-one solution to your undercounter ice cube needs.
Technical Specifications
| Model | Ice Shape | Ice Production 24 Hours: 70°Air/50°F Water 21°Air/10°C Water | Ice Production 24 Hours: 90°Air/70°F Water 32°Air/21°C Water | Power kWh/ 100 lbs. @ 90°/70°F 32°/21°C | Potable water usage gal/100 lbs. ice @90/70˚F |
| U 140 | regular/dice/half dice | 122 – 132 lbs 59 – 60 kg | 90 – 95 lbs 41 – 43 kg | 11.1 – 11.3 | 23.3 – 24.9 |
| U 190 | dice/half dice | 193 – 198 lbs 88 – 90 kg | 140 lbs 64 kg | 8.3 – 8.4 | 21.6 – 23.9 |
| U 240 | dice/half dice | 201 – 225 lbs 91 – 104 kg | 160 – 170 lbs 73 – 78 kg | 7.5 – 8.8 | 21.5 – 23.4 |
| U 310 | regular/dice/half dice | 271 – 304 lbs 123 – 138 kg | 226 – 250 lbs 103 – 114 kg | 6.1 – 8.3 | 23.5 |
Key Features
A New Level of Performance
Enhanced production capacities make NEO™ the new standard in undercounter ice machines. NEO delivers up to 40 lbs.* more ice over a 24-hour period as our previous models but keeps the same compact footprint. Plus, NEO outperforms in energy conservation as well with more ENERGY STAR® qualified models than ever before.
*Results vary depending on model
A New Level of Intelligence
Universally recognizable display icons that speak your language, whatever language you speak. Power, Delay, Cleaning, Bin Full and Service buttons provide on-the-spot feedback from your ice machine.
Bright, easy-to-read indicators and buttons are illuminated by long-life LED lights and are ideally placed on a slanted bin front for easy viewing and activation—no bending required!
A New Level of Convenience
With its removable bin and low profile construction, NEO™ fits just about anywhere you need it to be. In addition to increased performance and intelligence, NEO undercounter ice machines deliver a better standard of cleanability, ergonomics, sanitation, and serviceability.
A New Level of Serviceability
You don’t become a Best in Class ice machine without great service. NEO™ delivers here too, with a removable bin that makes it easy to perform service without moving the machine. Well-designed modular construction makes NEO ice machine much easier and faster to service—less money out of your pocket especially after the warranty expires.
