Mareno – Modular Cooking – Star 90 Electric Cookers
Simple and reliable, electric ranges are valuable allies in the kitchen. Thanks to the direct temperature control system, they allow more rational management of power.
Technical Details
- One-piece 2 mm thick pressed tops in 304PS stainless steel.
- Hotplates hermetically sealed to the pressed top.
- Each hotplate is equipped with a safety thermostat with automatic reset.
- Recessed spillage well with rounded corners to guarantee easy cleaning.
- Power supply VAC400 3N or VAC230 3.
- Countertop versions and freestanding models with electric oven.
Technical Specifications
| NC94E | NC94E2 | NC98E | NC98E2 | NC9FE8E | NC9FE8E2 | NCT94E | NCT94E2 | NCT98E | NCT98E2 | NCT9FE8E | NCT9FE8E2 | NCT9FEV8E | NC9FEV8E | NC9FEV8E2 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W x D x H (mm) | 400 x 900 x 250 | 400 x 900 x 250 | 800 x 900 x 250 | 800 x 900 x 250 | 800 x 900 x 870 | 800 x 900 x 870 | 400 x 900 x 250 | 400 x 900 x 250 | 800 x 900 x 250 | 800 x 900 x 250 | 800 x 900 x 870 | 800 x 900 x 870 | 800 x 900 x 870 | 800 x 900 x 870 | 800 x 900 x 870 |
| Weight (kg) | 39 | 40 | 70 | 70 | 138 | 138 | 50 | 50 | 80 | 80 | 178 | 178 | 178 | 138 | 138 |
| Volume (m³) | 0.25 | 0.25 | 0.5 | 0.5 | 1 | 1 | 0.3 | 0.3 | 0.5 | 0.5 | 1 | 1 | 1 | 1 | 1 |
| Power supply | VAC400 3N 50Hz | VAC230 3 50Hz | VAC400 3N 50Hz | VAC230 3 50Hz | VAC400 3N 50Hz | VAC230 3 50Hz | VAC400 3N 50Hz | VAC230 3 50Hz | VAC400 3N 50Hz | VAC230 3 50Hz | VAC400 3N 50Hz | VAC230 3 50Hz | VAC400 3N 50Hz | VAC400 3N 50Hz | VAC230 3 50Hz |
| Electric power (kW) | 8 | 8 | 16 | 16 | 22 | 22 | 8 | 7 | 16 | 14 | 22 | 20 | 22.08 | 22.08 | 22.08 |
| Qty heating zones | 2 x 4 kW | 2 x 4 kW | 4 x 4 kW | 4 x 4 kW | 4 x 4 kW | 4 x 4 kW | 2 x 4 kW | 2 x 4 kW | 4 x 4 kW | 4 x 4 kW | 4 x 4 kW | 4 x 4 kW | 4 x 4 kW | 4 x 4 kW | 4 x 4 kW |
| Plate dim. (mm) | 2 x 300 x 300 | 2 x 300 x 300 | 4 x 300 x 300 | 4 x 300 x 300 | 4 x 300 x 300 | 4 x 300 x 300 | 320 x 700 x 30h | 320 x 700 x 30h | 720 x 720 x 30h | 720 x 720 x 30h | 720 x 720 x 30h | 720 x 720 x 30h | 720 x 720 x 30h | 4 x 300 x 300 | 4 x 300 x 300 |
Available Models

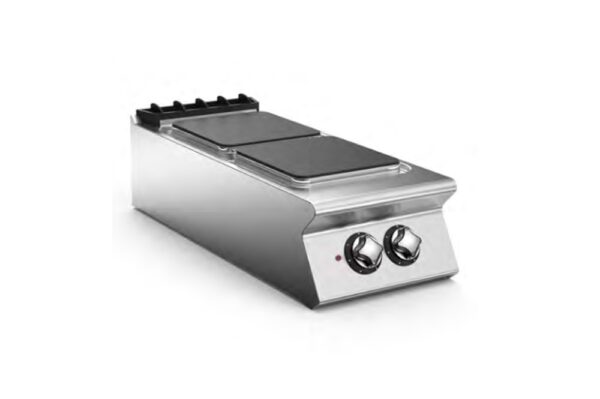

Electric hob constructed in AISI 304 stainless steel. 20/10 thick pressed top, designed for flush alignment and to accommodate the water column accessory. Recessed top to contain spills. Square 300×300 mm sealed hotplates in cast-iron with 4 kW output. 7-position selector switch for heat adjustment. Activation of heating signalled by an orange indicator led on the control panel. Hotplates equipped with automatic reset safety thermostat which trips in the event the appliance is switched on with an unsuitable pan or no pan at all. Indicator leds for verifying correct appliance operation. IPX5 protection rating.
Electric hob constructed in AISI 304 stainless steel. 20/10 thick pressed top, designed for flush alignment and to accommodate the water column accessory. Recessed top to contain spills. Square 300×300 mm sealed hotplates in cast-iron with 4 kW output. 7-position selector switch for heat adjustment. Activation of heating signalled by an orange indicator led on the control panel. Hotplates equipped with automatic reset safety thermostat which trips in the event the appliance is switched on with an unsuitable pan or no pan at all. Indicator leds for verifying correct appliance operation. IPX5 protection rating.

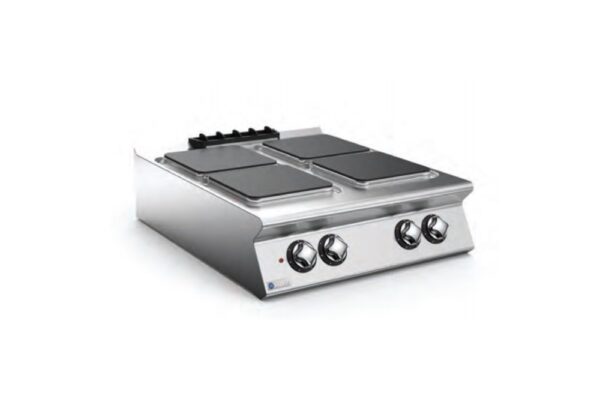

Electric hob constructed in AISI 304 stainless steel. 20/10 thick pressed top, designed for flush alignment and to accommodate the water column accessory. Recessed top to contain spills. Square 300×300 mm sealed hotplates in cast-iron with 4 kW output. 7-position selector switch for heat adjustment. Activation of heating signalled by an orange indicator led on the control panel. Hotplates equipped with automatic reset safety thermostat which trips in the event the appliance is switched on with an unsuitable pan or no pan at all. Indicator leds for verifying correct appliance operation. IPX5 protection rating.
Electric hob constructed in AISI 304 stainless steel. 20/10 thick pressed top, designed for flush alignment and to accommodate the water column accessory. Recessed top to contain spills. Square 300×300 mm sealed hotplates in cast-iron with 4 kW output. 7-position selector switch for heat adjustment. Activation of heating signalled by an orange indicator led on the control panel. Hotplates equipped with automatic reset safety thermostat which trips in the event the appliance is switched on with an unsuitable pan or no pan at all. Indicator leds for verifying correct appliance operation. IPX5 protection rating.
Free-standing electric range with electric oven constructed in AISI 304 stainless steel. Electric hob constructed in AISI 304 stainless steel. 20/10 thick pressed top, designed for flush alignment and to accommodate the water column accessory. Recessed top to contain spills. Square 300×300 mm sealed hotplates in cast-iron with 4 kW output. Hotplates equipped with automatic reset safety thermostat which trips in the event the appliance is switched on without a pan. 7-position selector switch for heat adjustment. Indicator led for verifying correct appliance operation. GN 2/1 conventional electric oven. Ovenäheated by independently controlled top and bottom heating elements. Thermostat control providing temperature adjustment from 50°C to 300°C. Cooking chamber in stainless steel, dimensions 575x700x300h mm. Oven bottom in cast iron. Oven inner door in stainless steel with labyrinth seal. 4-position selector switch, safety thermostat. Indicator leds indicating correct oven operation. Oven power: 6 kW. Appliance equipped with height adjustable feet in stainless steel. IPX5 protection rating.
Free-standing electric range with electric oven constructed in AISI 304 stainless steel. Electric hob constructed in AISI 304 stainless steel. 20/10 thick pressed top, designed for flush alignment and to accommodate the water column accessory. Recessed top to contain spills. Square 300×300 mm sealed hotplates in cast-iron with 4 kW output. Hotplates equipped with automatic reset safety thermostat which trips in the event the appliance is switched on without a pan. 7-position selector switch for heat adjustment. Indicator led for verifying correct appliance operation. GN 2/1 conventional electric oven. Ovenäheated by independently controlled top and bottom heating elements. Thermostat control providing temperature adjustment from 50°C to 300°C. Cooking chamber in stainless steel, dimensions 575x700x300h mm. Oven bottom in cast iron. Oven inner door in stainless steel with labyrinth seal. 4-position selector switch, safety thermostat. Indicator leds indicating correct oven operation. Oven power: 6 kW. Appliance equipped with height adjustable feet in stainless steel. IPX5 protection rating.
Electric solid top hotplate with 2 independent plates, constructed in AISI 304 stainless steel. Recessed perimeter to contain spills. Hotplate in carbon steel plate with smooth chromed surface. Radiused corners and rounded top edge. Hotplate not built-in but removable. Hotplate surface 320x700x30h mm from top. 2 independent hotplates with 4 kW output. Thermostat control providing surface temperature adjustment from 50 to 400 °C. Automatic reset safety thermostat which shuts off heating in the event the appliance is switched on with an unsuitable pan or no pan at all. Indicator leds for verifying correct appliance operation. IPX5 protection rating
Electric solid top hotplate with 2 independent plates, constructed in AISI 304 stainless steel. Recessed perimeter to contain spills. Hotplate in carbon steel plate with smooth chromed surface. Radiused corners and rounded top edge. Hotplate not built-in but removable. Hotplate surface 320x720x30h mm from top. 2 independent hotplates with 4 kW output. Thermostat control providing surface temperature adjustment from 50 to 400 °C. Automatic reset safety thermostat which shuts off heating in the event the appliance is switched on with an unsuitable pan or no pan at all. Indicator leds for verifying correct appliance operation. IPX5 protection rating.
Electric solid top hotplate with 4 independent plates, constructed in AISI 304 stainless steel. Recessed perimeter to contain spills. Hotplate in carbon steel plate with smooth chromed surface. Radiused corners and rounded top edge. Hotplate not built-in but removable. Hotplate surface 720x720x30h mm from top. 4 independent hotplates with 4 kW output. Thermostat control providing surface temperature adjustment from 50 to 400 °C. Automatic reset safety thermostat which shuts off heating in the event the appliance is switched on with an unsuitable pan or no pan at all. Indicator leds for verifying correct appliance operation. IPX5 protection rating.
Electric solid top hotplate with 4 independent plates, constructed in AISI 304 stainless steel. Recessed perimeter to contain spills. Hotplate in carbon steel plate with smooth chromed surface. Radiused corners and rounded top edge. Hotplate not built-in but removable. Hotplate surface 720x720x30h mm from top. 4 independent hotplates with 3,5 kW output. Thermostat control providing surface temperature adjustment from 50 to 400 °C. Automatic reset safety thermostat which shuts off heating in the event the appliance is switched on with an unsuitable pan or no pan at all. Indicator leds for verifying correct appliance operation. IPX5 protection rating.
Electric solid top hotplate with 4 independent plates, constructed in AISI 304 stainless steel. Recessed perimeter to contain spills. Hotplate in carbon steel plate with smooth chromed surface. Radiused corners and rounded top edge. Hotplate not built-in but removable. Hotplate surface 720x720x30h mm from top. 4 independent hotplates with 4 kW output. Thermostat control providing surface temperature adjustment from 50 to 400 °C. Automatic reset safety thermostat which shuts off heating in the event the appliance is switched on with an unsuitable pan or no pan at all. Indicator leds for verifying correct appliance operation. GN 2/1 conventional electric oven. Ovenäheated by independently controlled top and bottom heating elements. Thermostat control providing temperature adjustment from 100°C to 330°C. 4-position selector switch, safety thermostat. Cooking chamber dimensions, 535x650x300h mm. Oven power: 6 kW. Indicator leds for verifying correct appliance operation. Height-adjustable feet in stainless steel. IPX5 protection rating.
Electric solid top hotplate with 4 independent plates, constructed in AISI 304 stainless steel. Recessed perimeter to contain spills. Hotplate in carbon steel plate with smooth chromed surface. Radiused corners and rounded top edge. Hotplate not built-in but removable. Hotplate surface 720x720x30h mm from top. 4 independent hotplates with 4 kW output. Thermostat control providing surface temperature adjustment from 50 to 400 °C. Automatic reset safety thermostat which shuts off heating in the event the appliance is switched on with an unsuitable pan or no pan at all. Indicator leds for verifying correct appliance operation. GN 2/1 conventional electric oven. Ovenäheated by independently controlled top and bottom heating elements. Thermostat control providing temperature adjustment from 100°C to 330°C. 4-position selector switch, safety thermostat. Cooking chamber dimensions, 535x650x300h mm. Oven power: 6 kW. Indicator leds for verifying correct appliance operation. Height-adjustable feet in stainless steel. IPX5 protection rating.
Electric solid top hotplate with 4 independent plates, constructed in AISI 304 stainless steel. Recessed perimeter to contain spills. Hotplate in carbon steel plate with smooth chromed surface. Radiused corners and rounded top edge. Hotplate not built-in but removable. Hotplate surface 720x720x30h mm from top. 4 independent hotplates with 4 kW output. Thermostat control providing surface temperature adjustment from 50 to 400 °C. Automatic reset safety thermostat which shuts off heating in the event the appliance is switched on with an unsuitable pan or no pan at all. Indicator leds for verifying correct appliance operation. GN 2/1 electric fan oven. Ovenäheated by independently controlled top and bottom heating elements. Thermostat control providing temperature adjustment from 100°C to 330°C. 4-position selector switch, safety thermostat. Cooking chamber dimensions, 535x650x300h mm. Oven power: 6 kW. Indicator leds for verifying correct appliance operation. Height-adjustable feet in stainless steel. IPX5 protection rating.
Free-standing electric range with electric oven constructed in AISI 304 stainless steel. Electric hob constructed in AISI 304 stainless steel. 20/10 thick pressed top, designed for flush alignment and to accommodate the water column accessory. Recessed top to contain spills. Square 300×300 mm sealed hotplates in cast-iron with 4 kW output. Hotplates equipped with automatic reset safety thermostat which trips in the event the appliance is switched on without a pan. 7-position selector switch for heat adjustment. Indicator led for verifying correct appliance operation. GN 2/1 electric fan oven. Ovenäheated by independently controlled top and bottom heating elements. Thermostat control providing temperature adjustment from 110°C to 280°C. Cooking chamber in stainless steel, dimensions 575x700x300h mm. Oven bottom in cast iron. Oven inner door in stainless steel with labyrinth seal. 4-position selector switch, safety thermostat. Indicator leds indicating correct oven operation. Oven power: 6 kW. Appliance equipped with height adjustable feet in stainless steel. IPX5 protection rating.
Free-standing electric range with electric oven constructed in AISI 304 stainless steel. Electric hob constructed in AISI 304 stainless steel. 20/10 thick pressed top, designed for flush alignment and to accommodate the water column accessory. Recessed top to contain spills. Square 300×300 mm sealed hotplates in cast-iron with 4 kW output. Hotplates equipped with automatic reset safety thermostat which trips in the event the appliance is switched on without a pan. 7-position selector switch for heat adjustment. Indicator led for verifying correct appliance operation. GN 2/1 electric fan oven. Ovenäheated by independently controlled top and bottom heating elements. Thermostat control providing temperature adjustment from 110°C to 280°C. Cooking chamber in stainless steel, dimensions 575x700x300h mm. Oven bottom in cast iron. Oven inner door in stainless steel with labyrinth seal. 4-position selector switch, safety thermostat. Indicator leds indicating correct oven operation. Oven power: 6 kW. Appliance equipped with height adjustable feet in stainless steel. IPX5 protection rating.
Mareno Module Cooking Star 90
Brand
Mareno kitchens are built for life and designed on first-hand experience, through listening to customers’ needs and by working alongside chefs.
Mareno is an established brand, well known in Italy and abroad for the quality and reliability of its equipment.
Since 1962, we have served three generations of chefs and our modern and innovative style has made us the preferred choice of emerging young professionals.
