Essemtec – Pick-and-Place

Designed for even more product changes per day, an even bigger range of components, increasing requirements for placement accuracy, speed and availability combined with high quality – naturally adaptive – engineering. Most feeders per sqm in the marketplace, intelligent set-up concepts, the largest board sizes together with the most compact system sizes and the falcon software based on Essemtec`s “eez-technology“ ensure highly efficient and economical SMD manufacturing for service providers and in-house production.

Inquire Now

Overview

Features

Specifications

Most feeders per sqm in the marketplace, intelligent set-up concepts, the largest board sizes together with the most compact system sizes and the falcon software based on Essemtec`s “eez-technology“ ensure highly efficient and economical SMD manufacturing for service providers and in-house production.

Available Models

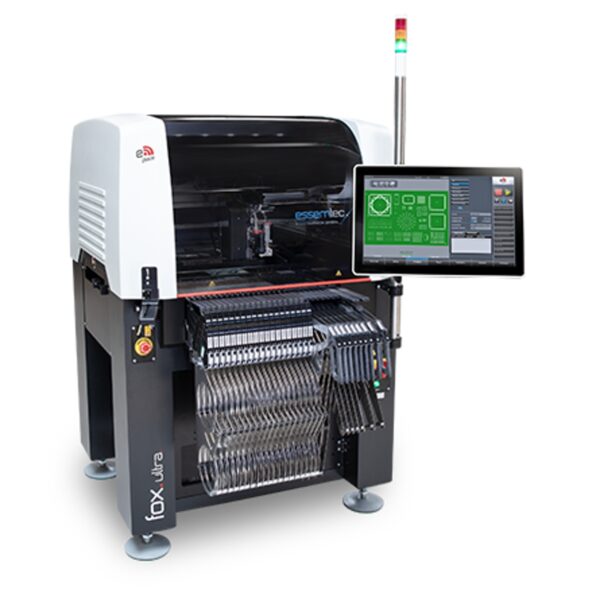

The Fox SMD Pick and Place can drive up to 200 feeder, illustrating its dedication to high-mix production. The machine is ideal for use in limited space production.

Technical Specifications

Fox 4 Fox 2 Fox
Optimum Placement Speed 31,000 cph
(4-axes)
17,500 cph
(2-axes)
9,100 cph
(1-axis)
Optimum Jetting Speed Solder Paste Jetting (dots/h)
Max frequency: 780,000 / BGA pattern Jet-on-the-Fly: 480,000
Average board speed: 310,000

Piezo Jetting – Glue (dots/h)
Max frequency: 2,000,000 / BGA pattern Jet-on-the-Fly: 780,000
BGA pattern Stop & Jet: 177,000
Feeder Capacity 8 mm Tape 200 (140 inline) 180 (120 inline)
Component Size Range 008004 imp. (0201) up to 109 x 87 mm
Placement Accuracy (x, y) Chip ± 40 μm (3σ) / QFP ± 30 μm (3σ)
Max. PCB dimensions 406 x 305 mm (16 x 12“)
Machine Footprint 1,027 x 1,117 mm (40 x 44”)
Approx. Machine Weight
(without / with full feeder)
875 kg (1929 lb) / 1020 kg (2249 lb)

Introducing – The Fox Pack – State-of-the-art technology. Expandable in any direction. The Fox can drive up to 200 feeder, illustrating its dedication to high-mix production. Due to its small footprint and reasonable weight, the machine is ideal for use in limited space production areas, even those located on upper floors.

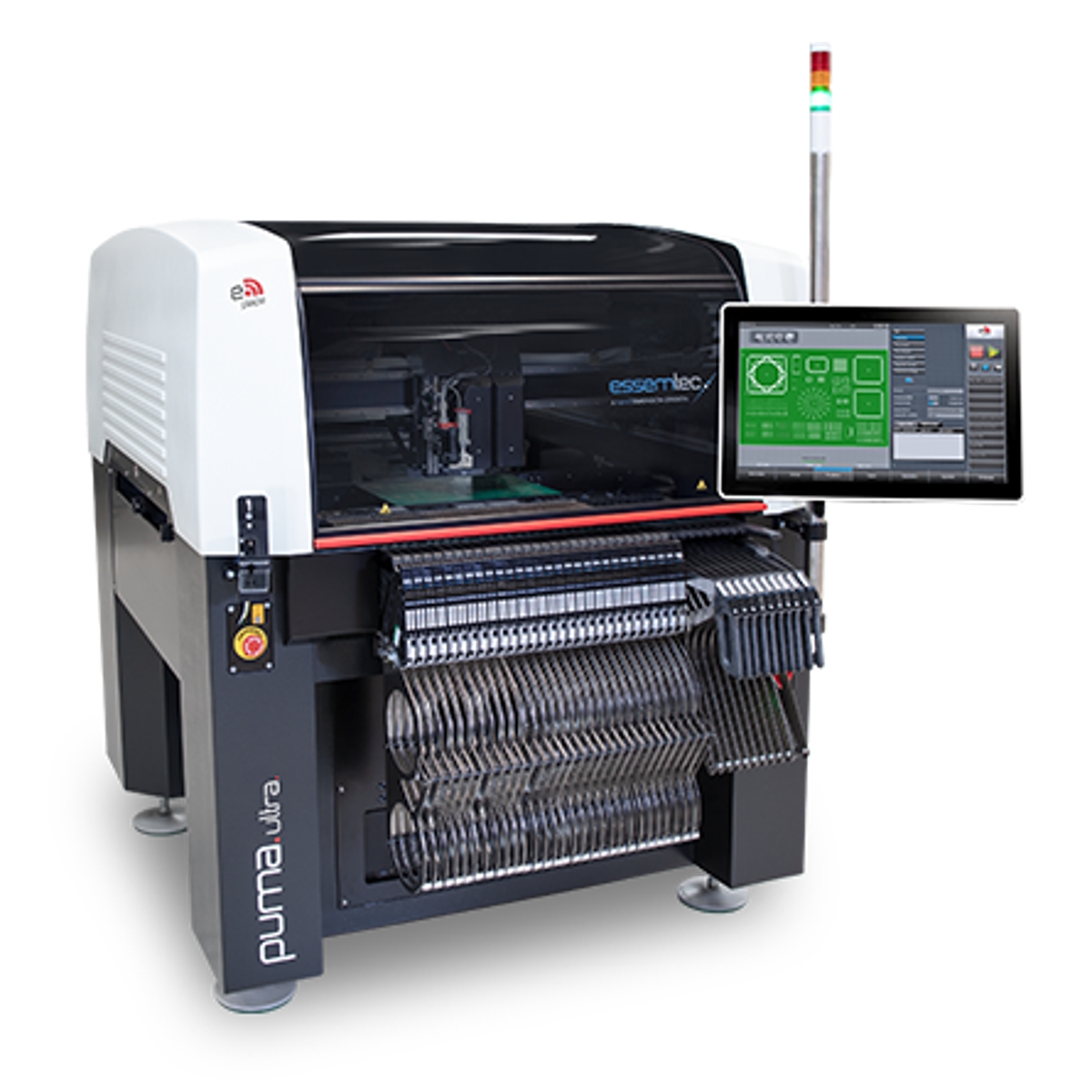

The Puma SMD Pick and Place with 280 Feeder. Adaptive modular machine concept with highspeed Mounting and Dispensing for ultraflexible, rapid prototyping and small series production.

Technical Specifications

Puma 4 Puma 2 Puma
Optimum Placement Speed 30,000 cph
(4-axes)
17,400 cph
(2-axes)
9,000 cph
(1-axis)
Optimum Jetting Speed Solder Paste Jetting (dots/h)
Max frequency: 780,000 / BGA pattern Jet-on-the-Fly: 480,000
Average board speed: 310,000

Piezo Jetting – Glue (dots/h)
Max frequency: 2,000,000 / BGA pattern Jet-on-the-Fly: 780,000
BGA pattern Stop & Jet: 177,000
Feeder Capacity 8 mm Tape 280 (160 inline) 260 (140 inline)
Component Size Range 008004 imp. (0201) up to 109 x 87 mm
Placement Accuracy (x, y) Chip ± 40 μm (3σ) / QFP ± 30 μm (3σ)
Max. PCB dimensions 560 x 610 mm (22 x 24”)
optional 1,830 x 610 mm (72 x 24”)
Machine Footprint 1,557 x 1,357 mm (61 x 53”)
Approx. Machine Weight
(without / with full feeder)
1670 kg (3680 lb) / 1920 kg (4233 lb)

Introducing – The Puma – State of the art technology. Expandable in any direction. Same as in nature our Puma is common modular and adaptive in all kinds of environment. With different modules the systems grow synchronously with the customer’s requirements for performance and processes. Puma is world`s best highspeed Pick-and-Place solution which can also be used in ultraflexible, rapid prototyping development.

Key Features

Fox.ultraPuma.ultra
Combined Process.Placing & dispensing in single pass-through
.Jet dispensing of solder paste or glue
.Highspeed placing and dispensing in single pass-through
.1, 2 or 4 placement-axes and 1-2 dispense processes
Productivity.Up to 1000 – 18,800 cph per module
.Up to 56,400 cph per line (3 modules)
.Optimum 18,100 cph, up to 54,300 cph inline
.Optimum jetting speed 180,000 – 720,000 dots/h
Small Footprint.Up to 200 feeder lanes on 1 sqm
.Up to 420 feeder lanes per line
.Up to 280 Feeder on 2 ㎡ (up to 420 inline)
.PCB size 560 x 610 mm, optional 1800 x 610 mm
Mineral Cast.No vibration, symmetrical mineral casting
.No warpage, no thermal drift
.No vibration, symmetrical mineral casting
.No warpage, no thermal drift
Quick Changeover.Nonstop production, intelligent smart feeder
.Nonstop feeder and production changeover
.Nonstop production, intelligent smart feeder
.Nonstop feeder and production changeover
Linear Motors.Fast, reliable double drive linear motors
.No maintenance, longest lifetime
.Fast, reliable double drive linear motors
.No maintenance, longest lifetime

Essemtec Application – Puma and Fox on the Hunt

Application clip of our Pick-and-Place “beasts” Fox and Puma. All Scenes from our product videos raw in real-time. No fast-forward, no effects, no post stabilization.

You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.

More Information

Essemtec – Puma

Puma is the world’s first high-speed pick and place solution that can also be used in the ultra-flexible prototyping development sector.

You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.

More Information

Key Industries

  • Semiconductor, Solar & Electronics
